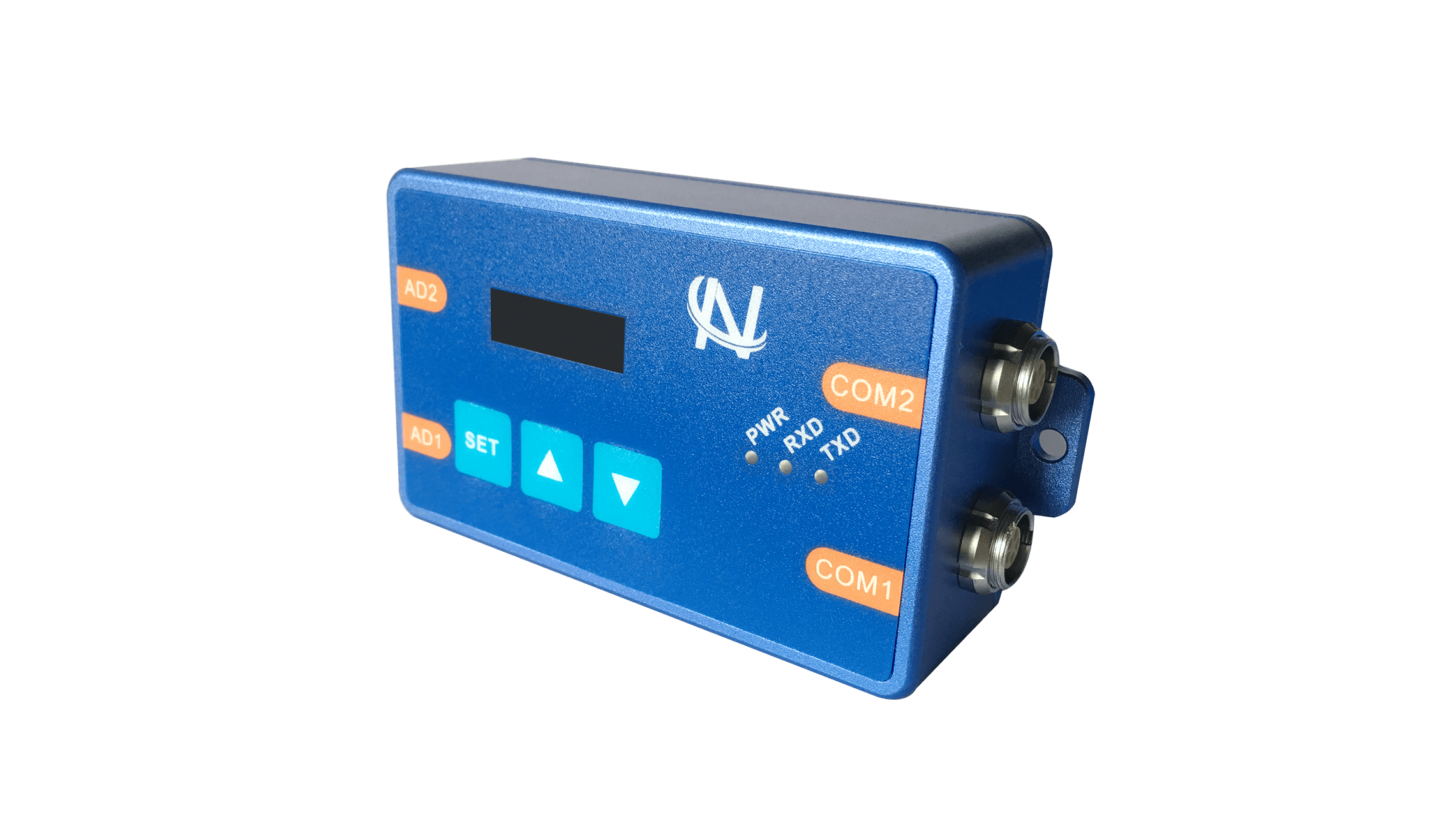

MINI-AD4
|
|
Analog input
|
4CH differential/8CH single-ended input, 24-bit ADC, can be connected to 0~10V voltage signal, temperature sensor PT100, K-type thermocouple, etc.
|
|
Switch input 1
|
0~30V input
|
|
Switch input 2
|
Frequency measurement, 0.5V~40V input, support double pulse/single pulse
|
|
Switch output
|
Frequency output
|
|
1 channel RS232
|
The default baud rate is 115200 (57600, 38400, 19200, 9600, 4800, 2400 can be selected)
|
|
1 channel CAN
|
Communication rate 125K, 250K, 500K, 1M can be set
|
|
1 channel RS485
|
The default baud rate is 9600 (115200, 57600, 38400, 19200, 4800, 2400 can be selected), parameter setting: display parameters can be switched, and baud rate can be set
|
|
Display method
|
0.91 inch OLED
|
|
Supply voltage
|
7~30VDC
|
|
Power consumption
|
About 2W
|
|
Overall dimensions (LWH)
|
110mmx58mmx30mm
|
|
Installation size
|
2 M4, center distance 102mm
|
|
Weight
|
About 180g
|
